 Windows OS Hub / Windows 11 / VPN Error 633: The modem is already in use or not configured

January 21, 2025

VPN Error 633: The modem is already in use or not configured

Attempting to connect to a VPN server from Windows may result in error 633:

Error 633. The modem (or other connecting device) is already in use or not properly configured.

can't connect VPN: The modem (or other connecting device) is already in use or not properly configured

Error 633 usually indicates that the default TCP communication port used by the modem for the VPN connection is being used by another process, or that the user is trying to run multiple VPN sessions simultaneously.

For example, the default TCP port used for PPTP VPN connections is 1723. Check that this network port number is not being used by other Windows processes, and kill them if necessary:

Get-Process -Id (Get-NetTCPConnection -LocalPort 1723).OwningProcess | Stop-Process -verbose

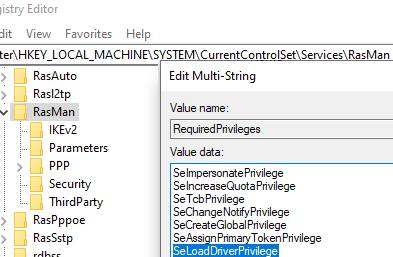

If the problem occurs with USB modems in Windows 10 or 11, a workaround is to allow the network driver to elevate privileges using SeLoadDriverPrivilege. To do this, go to the reg key HKLM\SYSTEM\CurrentControlSet\Services\RasMan, and add the SeLoadDriverPrivilege line to the RequiredPrivileges parameter.

SeLoadDriverPrivilege for Remote Access Connection Manager (RasMan) service

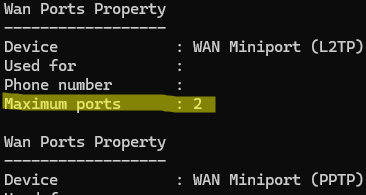

If you try to open multiple VPN connections simultaneously, note that Windows limits the maximum number of simultaneous VPN connections to two. Check it with the command::

netsh ras show wanports

As you can see, this limit is set for L2TP and other types of virtual WAN Miniport adapters:

Maximum ports = 2

netsh ras show wanports: the maximum number of ports for each type of WAN Minport (SSTP, IKEv2, L2TP, PPTP)

To increase the number of concurrent L2TP connections to 3, run the command:

netsh ras set wanports device="WAN Miniport (L2TP)" maxports=3

increase max vpn ports number on windows via netsh

Restart a computer for the changes to take effect.

You must manually add routes for VPN connections. Or, to add an IPv4/IPv6 route to a specified VPN connection, use the Add-VpnConnectionRoute PowerShell cmdlet.

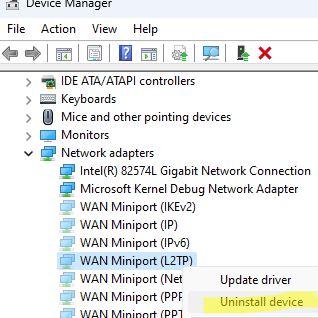

In some cases, removing the WAN Miniport for the VPN connection type you use in the Network Adapters section of Device Manager can help resolve the problem (View hidden devices option must be enabled). Rescan the computer hardware. This resets all virtual WAN Miniport adapter settings to default.

Remove virtual WAN Miniport adapter for target VPN connection type

For more information, see the article Fixing VPN Error: A connection to the remote computer could not be established.
