 Windows OS Hub / Active Directory / Install Active Directory Users and Computers (ADUC) Snap-in on Windows 10/11

April 18, 2022 Active DirectoryWindows 10Windows 11Windows Server 2019

Install Active Directory Users and Computers (ADUC) Snap-in on Windows 10/11

Active Directory Users and Computers (ADUC or DSA.msc) is one of the most commonly used tools for managing objects in an Active Directory domain. You can install ADUC on both Windows Server hosts and Windows 10 and 11 computers. The ADUC MMC snap-in is a part of the Microsoft Remote Server Administration Tools (RSAT). In this article, we’ll show how to install and use the Active Directory Users and Computers console on Windows.

Contents:
  • How to Install Active Directory and Computers on Windows 10 and 11?
  • How to Use Active Directory Users and Computers Console?
  • ADUC: Connecting Domain from a Workgroup Computer?

How to Install Active Directory and Computers on Windows 10 and 11?

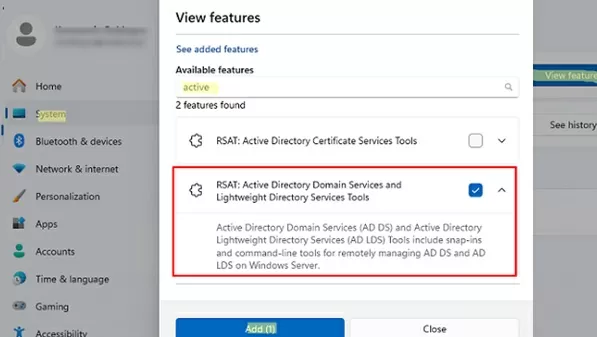

In modern builds of Windows 10 (1809+) and Windows 11, RSAT is installed online as Features on Demand. To install the Active Directory RSAT on Windows 10/11, go to Settings -> Apps -> Optional Features -> Add an optional feature (View features).

Type ‘Active Directory’ in the search bar and select RSAT: Active Directory Domain Services and Lightweight Directory Services Tool.

Click Next-> Install to start the installation.

windows 11 install RSAT: Active Directory Domain Services and Lightweight Directory Services Tool

Then Windows connects to Microsoft servers, downloads and installs the Active Directory Remote Server Administration Tools (including Active Directory graphical consoles, command prompt tools, and Active Directory PowerShell module).

Or, you can install AD administration tools using PowerShell:

Add-WindowsCapability –online –Name Rsat.ActiveDirectory.DS-LDS.Tools~~~~0.0.1.0

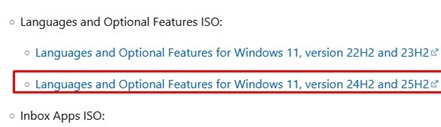

On a disconnected network, you can install Active Directory tools from Windows 10 Features on Demand ISO image (the FoD image is available in your personal section of the Microsoft Licensing Center).

To install the Active Directory tools from a network share containing the contents of the FoD image, run:

Add-WindowsCapability -Online -Name Rsat.ActiveDirectory.DS-LDS.Tools~~~~0.0.1.0 -LimitAccess -Source \\mun-fs1\Images\Windows10-FOD\

In previous Windows 10 builds, as well as in Windows 8.1, you can install RSAT using an MSU update. You can download RSAT here:

  • RSAT for Windows 10 1803/1709 — https://www.microsoft.com/en-us/download/details.aspx?id=45520
  • RSAT for Windows 8.1 — https://www.microsoft.com/en-us/download/details.aspx?id=39296

download rsat msu package for windows 10

Download the RSAT version that matches the bitness of your operating system. Double-click the file to start installation:

install rsat msu package on windows 10 using standalone installer

Or install the MSU file from in the command prompt in the quiet mode:

wusa.exe C:\Install\WindowsTH-RSAT_TP5_Update-x64.msu /quiet /norestart

After the RSAT installation is complete, restart your computer.

Then you just have to activate the necessary options. To do it:

  1. Right-click Start and select Control Panel;
  2. Click Programs and Features;
  3. Click Turn Windows features on or off on the left pane.
  4. Expand Remote Server Administration Tools-> Role Administration Tools -> AD DS and AD LDS Tools in the features tree;
  5. Check AD DS Tools and click OK. install ad ds tools in windows features

You can install ADUC from the command prompt as well. Run the commands below one by one:

dism /online /enable-feature /featurename:RSATClient-Roles-AD
dism /online /enable-feature /featurename:RSATClient-Roles-AD-DS
dism /online /enable-feature /featurename:RSATClient-Roles-AD-DS-SnapIns

install RSATClient-Roles-AD-DS-SnapIns features

After the administrative tools have been installed, you will see a link to Active Directory Users and Computers snap-in in the Administrative Tools section of the Control Panel.

Active Directory Users and Computers snap-in in control panel

How to Use Active Directory Users and Computers Console?

To open the ADUC console, click the icon in the Control Panel or run this command:

dsa.msc

run dsa.msc

All authenticated domain users can use ADUC to view Active Directory objects.

If your computer is joined to an Active Directory domain, then the ADUC connects to a domain controller depending on the current Logon server ($env:LOGONSERVER). The name of the domain controller you are connected to is at the top of the console.

You can connect to another AD domain controller or another domain by clicking the console root and selecting the Change option you want in the context menu.

ADUC: change domain or domain controller

The Active Directory console shows a tree-like Organizational Unit (OU) structure of your domain (and a separate section containing AD Saved Queries).

active directory roy users and computers mmc snap-in overview

A domain administrator may create containers (OUs) based on a physical or logical organization structure. Using a context menu, you can create new AD objects (users, groups, computers, OUs, contacts), rename, move, or delete objects. Depending on the selected object type, context menu options may vary.

For example, a user has options to reset the AD password or enable/disable the account.

ADUC user action menu

You can use the Search context menu to search for objects in AD.

An administrator can delegate permissions to create/edit/delete objects in Active Directory to other users or groups.

Using the View -> Add/Remove columns menu, you can add object attributes you want to see in the ADUC console.

In ADUC, you can view or change domain object properties. For example, you can open user properties and edit its settings. Some user properties are located in the corresponding tabs, and the full list of user attributes is available in the AD Attribute Editor tab.

how to view or change user properties in the ADUC console

You can add a separate tab with an AD user photo.

You will not be able to change the properties of an AD object if your ADUC console is connected to a read-only domain controller (RODC).

To show system containers and object properties in the Active Directory snap-in (they are hidden by default), check View -> Advanced Features.

enable hidden features in ADUC

Then all AD objects get a number of system tabs. For example, you can get a canonical object name, view an account creation date, or check Protect object from accidental deletion in the Object tab.

object properties tab in ADUC

ADUC: Connecting Domain from a Workgroup Computer?

If you want to connect to a domain controller from a computer outside your domain (a workgroup computer) using ADUC, follow the instructions below:

  1. Open the command prompt and run the mmc console as a different user: runas /netonly /user:woshub\jsmith mmc
  2. In the empty MMC console, select File->Add/Remove Snap-In;
  3. Move the Active Directory Users and Computers snap-in to the right panel and click Add; dsa.msc run fron non-domain (workgroup) computer
  4. To connect to a domain, click the console root and select Change domain. Enter the domain name. ADUC: connecting domain from workgroup computer

Then the ADUC console connects to the domain controller, gets, and displays the container (OU) structure of the Active Directory domain.
