 Windows OS Hub / Linux / Install and Configure OpenVPN Server on Linux CentOS/RHEL

December 31, 2020 CentOSLinuxQuestions and AnswersRHEL

Install and Configure OpenVPN Server on Linux CentOS/RHEL

In this article we’ll consider the installation and configuration of an OpenVPN server running Linux CentOS/RHEL (7/8) and show how to join two remote computers (or offices) behind NAT into a single network using a configured OpenVPN server. VPN clients will be authenticated using certificates.

Contents:
  • Install OpenVPN and Easy-RSA
  • How to Configure Easy-RSA and Generate X.509 Certificates?
  • Generate OpenVPN Certificates and Keys
  • OpenVPN Server Configuration File, Firewall Rules
  • How to Connect Multiple Offices (Computers) Using OpenVPN?

VPN is a set of technologies that allow to build a secure network over public networks or the Internet. Using a VPN, you can connect different devices or networks into a single secure local network over the Internet.

OpenVPN is one of the open source SSL/TLS-based  implementations of the VPN technology based on OpenSSL. Using OpenVPN, you can connect both remote offices and individual computers behind a NAT device into a single network.

Install OpenVPN and Easy-RSA

In the first step, you must connect EPEL repository and update your host:

# yum install epel-release -y
# yum update -y

After the system has updated, install OpenVPN and Easy-RSA using yum package manager (we’ll need it to implement PKI key infrastructure on the VPN server).

# yum install openvpn easy-rsa -y

How to Configure Easy-RSA and Generate X.509 Certificates?

Copy all easy-rsa scripts to /etc/openvpn/:

# cp -r /usr/share/easy-rsa /etc/openvpn/

Go to /etc/openvpn/easy-rsa/3/ and create the vars file there:

# cd /etc/openvpn/easy-rsa/3/
# nano vars

Add the file contents (you can modify the config according to your needs):

set_var EASYRSA "$PWD"
set_var EASYRSA_PKI "$EASYRSA/pki"
set_var EASYRSA_DN "cn_only"
set_var EASYRSA_REQ_COUNTRY "DE"
set_var EASYRSA_REQ_PROVINCE "MUN"
set_var EASYRSA_REQ_CITY "BY"
set_var EASYRSA_REQ_ORG "WOSHUB"
set_var EASYRSA_REQ_EMAIL "vpnadmin@woshub.com"
set_var EASYRSA_REQ_OU "IT dept"
set_var EASYRSA_KEY_SIZE 4096
set_var EASYRSA_ALGO rsa
set_var EASYRSA_CA_EXPIRE 7500
set_var EASYRSA_CERT_EXPIRE 3650
set_var EASYRSA_NS_SUPPORT "no"
set_var EASYRSA_NS_COMMENT "CERTIFICATE AUTHORITY"
set_var EASYRSA_EXT_DIR "$EASYRSA/x509-types"
set_var EASYRSA_SSL_CONF "$EASYRSA/openssl-1.0.cnf"
set_var EASYRSA_DIGEST "sha512"

You can specify any data in the file, it will not influence the configuration and further operation of the server.

The file must be executable, so run:

# chmod +x vars

Generate OpenVPN Certificates and Keys

Prior to creating a key, initialize the PKI directory and create a CA key.
# cd /etc/openvpn/easy-rsa/3/

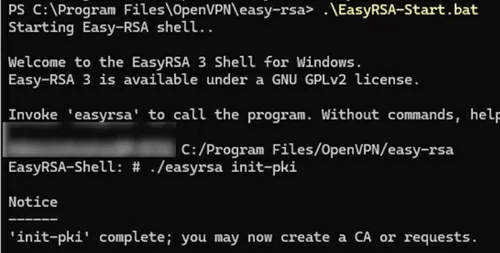

# ./easyrsa init-pki

Note: using Easy-RSA configuration from: ./vars
init-pki complete; you may now create a CA or requests.
Your newly created PKI dir is: /etc/openvpn/easy-rsa/3/pki

Create a CA key:

# ./easyrsa build-ca

After running the command, you will need to enter the password to generate the key and certificates. You will need the password later to sign the certificates.

easyrsa generate ca key and certificates

Create a server key (the server name is vpn.woshub.com):

the nopass option disables password

# ./easyrsa gen-req vpn.woshub.com nopass

Note: using Easy-RSA configuration from: ./vars
Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017
Generating a 4096 bit RSA private key
.........................++
writing new private key to '/etc/openvpn/easy-rsa/3/pki/private/vpn.woshub.com.key.R4IYCbD1zP'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Common Name (eg: your user, host, or server name) [vpn.woshub.com]:
Keypair and certificate request completed. Your files are:
req: /etc/openvpn/easy-rsa/3/pki/reqs/vpn.woshub.com.req
key: /etc/openvpn/easy-rsa/3/pki/private/vpn.woshub.com.key

When issuing a certificate, press Enter in the Common Name column.

Sign the vpn.woshub.com key using our CA certificate:

# ./easyrsa sign-req server vpn.woshub.com

To sign the certificate, we will need the password we have set when issuing the CA certificate:

easyrsa sign-req - gennerate certificates for openvpn

As shown in the screenshot, you will have to enter yes and CA password in process.

To make sure the certificates have been generated with no errors, run this command:

# openssl verify -CAfile pki/ca.crt pki/issued/vpn.woshub.com.crt

pki/issued/vpn.woshub.com.crt: OK

All OpenVPN server certificates have been created.

  • The root certificate  pki/ca.crt
  • The private server key pki/private/vpn.woshub.com.key
  • The server certificate  pki/issued/vpn.woshub.com.crt

To generate a client key, run the following command:

# ./easyrsa gen-req client_name nopass

Let’s generate admin1 client key:
# ./easyrsa gen-req admin1 nopass

Note: using Easy-RSA configuration from: ./vars
Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017
Generating a 4096 bit RSA private key
..........++
writing new private key to '/etc/openvpn/easy-rsa/3/pki/private/admin1.key.R5OY6reT2e'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Common Name (eg: your user, host, or server name) [admin1]:
Keypair and certificate request completed. Your files are:
req: /etc/openvpn/easy-rsa/3/pki/reqs/admin1.req
key: /etc/openvpn/easy-rsa/3/pki/private/admin1.key

You must sign it using the CA certificate, like the server key:

# ./easyrsa sign-req client admin1

easyrsa generate client certificate

The certificate for the user has been created.

Additionally, you have to generate a Diffie-Hellman key to be used for key exchange:

# ./easyrsa gen-dh

It takes some time to generate:

easyrsa gen-dh

Then generate a TSL certificate:

# openvpn --genkey --secret ta.key

If later we are going to revoke client certificates, we need to generate a CRL key:

# ./easyrsa gen-crl

Note: using Easy-RSA configuration from: ./vars
Using SSL: openssl OpenSSL 1.0.2k-fips 26 Jan 2017
Using configuration from /etc/openvpn/easy-rsa/3/pki/safessl-easyrsa.cnf
Enter pass phrase for /etc/openvpn/easy-rsa/3/pki/private/ca.key:
An updated CRL has been created.
CRL file: /etc/openvpn/easy-rsa/3/pki/crl.pem

To revoke a certificate, run this command:

./easyrsa revoke admin1 — where admin1 is the certificate name

The necessary certificates have been created. Now copy them to the work directories.

Here are the server certificates:

# cp pki/ca.crt /etc/openvpn/server/
# cp pki/issued/vpn.woshub.com.crt /etc/openvpn/server/
# cp pki/private/vpn.woshub.com.key /etc/openvpn/server/
# cp pki/private/dh.pem /etc/openvpn/server/
# cp pki/private/ta.key /etc/openvpn/server/
# cp pki/crl.pem /etc/openvpn/server/

Here are the client certificates:

# cp pki/issued/admin1.crt /etc/openvpn/client/
# cp pki/private/admin1.key /etc/openvpn/client/

OpenVPN Server Configuration File, Firewall Rules

Let’s move on to the settings of OpenVPN configuration file. First of all, create your OpenVPN configuration file server.conf:

# cd /etc/openvpn/ && nano server.conf

Change the file contents as follows:

# Specify the port, protocol and device
port 1194
proto udp
dev tun
# Specify the paths to the server certificates
ca /etc/openvpn/server/ca.crt
cert /etc/openvpn/server/vpn.woshub.com.crt
key /etc/openvpn/server/vpn.woshub.com.key
# Paths to key CRL and DH
dh /etc/openvpn/server/dh.pem
crl-verify /etc/openvpn/server/crl.pem
# Specify the IP settings of the network VPN clients will get addresses from
server 10.1.2.0 255.255.255.0
push "redirect-gateway def1"
# Specify the assigned DNS servers
push "dhcp-option DNS 8.8.8.8"
push "dhcp-option DNS 8.8.4.4"
# Allow connection to different clients with the same key
duplicate-cn
# TLS protection
tls-auth /etc/openvpn/server/ta.key 0
cipher AES-256-CBC
tls-version-min 1.2
tls-cipher TLS-DHE-RSA-WITH-AES-256-GCM-SHA384:TLS-DHE-RSA-WITH-AES-256-CBC-SHA256:TLS-DHE-RSA-WITH-AES-128-GCM-SHA256:TLS-DHE-RSA-WITH-AES-128-CBC-SHA256
auth SHA512
auth-nocache
# Other configuration details
keepalive 20 60
persist-key
persist-tun
comp-lzo yes
daemon
user nobody
group nobody
# Path to the log file
log-append /var/log/openvpn.log
verb 3

Then save the file. I have specified the default UDP port 1194 for my VPN server, but you can specify any free port on your server for your OpenVPN.

Now you just have to set firewall rules to allow connection and routing between segments.

If you are using firewalld, activate the forwarding kernel module first:

# echo 'net.ipv4.ip_forward = 1' >> /etc/sysctl.conf
# sysctl -p

net.ipv4.ip_forward = 1

Add openvpn service to firewalld, and tun0 interface to the trusted zone:

# firewall-cmd --permanent --add-service=openvpn
# firewall-cmd --permanent --zone=trusted --add-interface=tun0

Activate ‘MASQUERADE’ for the firewalld trusted zone:
# firewall-cmd --permanent --zone=trusted --add-masquerade

Activate NAT:

# firewall-cmd --permanent --direct --passthrough ipv4 -t nat -A POSTROUTING -s 10.1.2.0/24 -o Server_IP -j MASQUERADE
# firewall-cmd –reload

If you are using iptables without firewalld, run these commands:

# iptables -t nat -A POSTROUTING -s 10.1.2.0/24 -o eth0 -j MASQUERADE
# iptables -A INPUT -p udp –dport 1194 -j ACCEPT
# service iptables save

Run OpenVPN service and add it to startup:

# systemctl start openvpn@server
# systemctl enable openvpn@server

Make sure that the udp\1194 port is listening by the openvpn service:

# lsof -i:1194

COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME
openvpn 12327 nobody 5u IPv4 45122 0t0 UDP *:openvpn

Check the IP settings of the network interface:

# ip a

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
3: tun0: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UNKNOWN group default qlen 100
link/none
inet 10.1.2.1 peer 10.1.2.2/32 scope global tun0
valid_lft forever preferred_lft forever

As you can see, the network specified during the configuration is added to the tun0 device.

These are the minimum settings to make your OpenVPN work.

How to Connect Multiple Offices (Computers) Using OpenVPN?

Let’s see how to connect to the OpenVPN server from two remote computers having Internet access through NAT and join them into a single network. To connect from a computer running Windows to an OpenVPN server, I am using an official client. You can download it on the official website, but we won’t describe it in detail, and go directly to its configuration.

After you have installed the client, move on to creating the configuration file here:

C:\Program Files\OpenVPN\config\

I have created a file with the name client and added the following contents to it:

client
dev tun
proto udp
remote 112.113.114.15 1194
resolv-retry infinite
nobind
block-outside-dns
persist-key
persist-tun
mute-replay-warnings
remote-cert-tls server
tls-client
auth SHA512
tls-auth "C:\\Program Files\\OpenVPN\\config\\ta.key" 1
remote-cert-eku "TLS Web Server Authentication"
ca "C:\\Program Files\\OpenVPN\\config\\ca.crt"
cert "C:\\Program Files\\OpenVPN\\config\\admin1.crt"
key "C:\\Program Files\\OpenVPN\\config\\admin1.key"
cipher AES-256-CBC
comp-lzo
verb 3

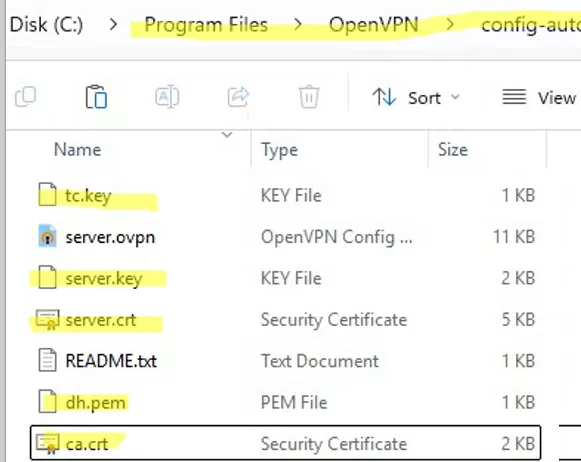

To configure it, we’ll need the client, security and server certificates we created earlier. You must download them from your server and place to a local folder. Then specify the path to them in the OpenVPN client configuration file.

Then you can connect to the server by clicking the OpenVPN icon in the tray:

openvpn windows client connect

I have connected and got the following IP address for my device:

IPv4 address. . . . . . . . . . . . : 10.1.2.14
Subnet mask . . . . . . . . . . : 255.255.255.0

On the second computer behind a NAT, I performed the same actions and created a certificate for the second user in advance. After connecting, the second PC also got an IP address from the VPN network:

IPv4 address. . . . . . . . . . . . : 10.1.2.16
Subnet mask . . . . . . . . . . : 255.255.255.0

After connecting, both computers are in the same network and see each other.

Ping the second PC:

Pinging 10.1.2.16 with 32 bytes of data:
Reply from 10.1.2.16: bytes=32 time=73ms TTL=127

Ping on the first PC:

Pinging 10.1.2.14 with 32 bytes of data:
Reply from 10.1.2.14: bytes=32 time=79ms TTL=127

Both connected VPN clients can send packets and transfer files directly to each other. Thus, we could join two device physically located in different places of the country into a single local network.

You can create any number of keys or certificates for users on your OpenVPN server. If you need a new certificate, run these commands for /etc/openvpn/easy-rsa/3:

# ./easyrsa gen-req clientname nopass
# ./easyrsa sign-req client clientname

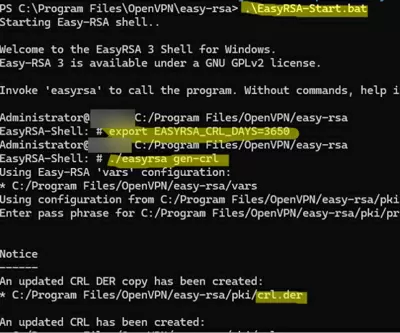

Don’t forget to revoke client certificates if they are not used to keep your network secure.

0 comment
0
Facebook Twitter Google + Pinterest
previous post
How to Enable and Configure User Disk Quotas in Windows?
next post
Configuring Software RAID on Linux Using MDADM

Related Reading

Disable Built-in PDF Viewer in Microsoft Edge

February 3, 2023

Join a Windows Computer to an Active Directory...

February 2, 2023

Enable Internet Explorer (IE) Compatibility Mode in Microsoft...

January 27, 2023

How to Disable or Uninstall Internet Explorer (IE)...

January 26, 2023

How to Stop Automatic Upgrade to Windows 11?

January 18, 2023

Leave a Comment Cancel Reply

Categories

  • Active Directory
  • Group Policies
  • Exchange Server
  • Microsoft 365
  • Azure
  • Windows 11
  • Windows 10
  • Windows Server 2022
  • Windows Server 2019
  • Windows Server 2016
  • PowerShell
  • VMWare
  • Hyper-V
  • Linux
  • MS Office

Recent Posts

  • Configure User’s Folder Redirection with Group Policy

    February 3, 2023
  • Using Previous Command History in PowerShell Console

    January 31, 2023
  • How to Install the PowerShell Active Directory Module and Manage AD?

    January 31, 2023
  • Finding Duplicate E-mail (SMTP) Addresses in Exchange

    January 27, 2023
  • How to Delete Old User Profiles in Windows?

    January 25, 2023
  • How to Install Free VMware Hypervisor (ESXi)?

    January 24, 2023
  • How to Enable TLS 1.2 on Windows?

    January 18, 2023
  • Allow or Prevent Non-Admin Users from Reboot/Shutdown Windows

    January 17, 2023
  • Fix: Can’t Extend Volume in Windows

    January 12, 2023
  • Wi-Fi (Internet) Disconnects After Sleep or Hibernation on Windows 10/11

    January 11, 2023

Follow us

woshub.com
  • Facebook
  • Twitter
  • RSS
Popular Posts
  • How to Configure MariaDB Master-Master/Slave Replication?
  • How to Mount Google Drive or OneDrive in Linux?
  • KVM: How to Expand or Shrink a Virtual Machine Disk Size?
  • Hyper-V Boot Error: The Image’s Hash and Certificate Are not Allowed
  • Adding VLAN Interface in CentOS/Fedora/RHEL
  • Configuring High Performance NGINX and PHP-FPM Web Server
  • Install and Configure SNMP on RHEL/CentOS/Fedor
Footer Logo

@2014 - 2023 - Windows OS Hub. All about operating systems for sysadmins


Back To Top
